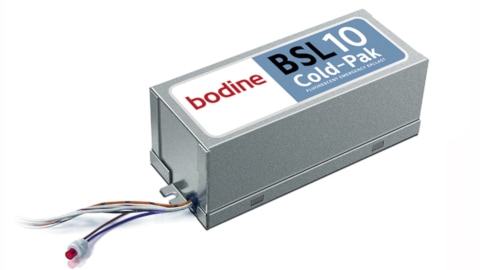

Emergency LED Driver, Class 2 Listed for field installation Extreme Cold Environments 14.0 Watts minimum initial output power
|
Model #
|
12NC
|
|
BSL10COLD
|
913702453401
|
|
UL Listed
|
For Field or Factory Installation (Indoor and Damp)
|
|
Illumination Time
|
90 Minutes
|
|
Full Warranty
|
5 Years (NOT pro-rata)
|
|
Dual Input Voltage
|
120 or 277 VAC, 60 Hz
|
|
AC Input Current
|
200 mA maximum with internal heater on
90 mA maximum when internal heater off |
|
AC Input Power Rating
|
25 W maximum with internal heater on
7 W maximum when internal heater off |
|
Output Voltage
|
24-52 VDC
|
|
Output Power
|
14.0 W minimum initial output power NFPA101 and NEC 700.12 compliant
|
|
Test SwitchTest Switch/Charging Indicator
|
Two-Wire Illuminated Test Switch (2W-ITS)
|
|
Battery
|
High-Temperature,
Maintenance-Free Nickel-Cadmium Battery 7- to 10-Year Life Expectancy |
|
Battery Charging Current
|
270 mA
|
|
Recharge Time
|
24 Hours
|
|
Temperature Rating (Ambient)
|
-20°C to +55°C (-4°F to +131°F)
|
|
Dimensions
|
8.968” x 3.457” x 2.930”
(227.8 mm x 87.8 mm x 74.4 mm) Mounting Center 8.514” (216.3 mm) |
|
Weight
|
3.6 lbs. (1.6Kg) - metal w/o conduit
|
