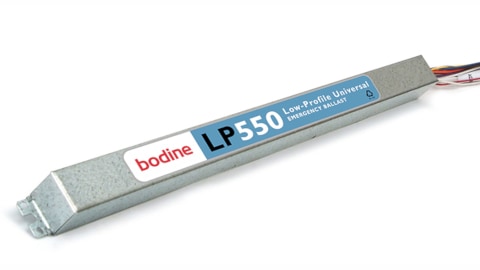

Low-profile for standard and high-output T5 and T8 lamps
End-of-lamp-life compatible
End-of-lamp-life compatible
|
Model #
|
12NC
|
|
LP550M
|
913710839502
|
|
UL Listed
|
Factory or Field Installation (Indoor and Damp)
|
|
Illumination Time
|
90 Minutes
|
|
Initial Light Output
|
390 - 700 Lumens @ 25°C
|
|
Full Warranty
|
5 Years (NOT pro-rata)
|
|
Dual Input Voltage
|
120/277 VAC, 60 Hz
|
|
AC Input Current
|
190 mA
|
|
AC Input Power Rating
|
2.6 Watts
|
|
Test Switch
|
Single Pole
|
|
Battery
|
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery 7- to 10-Year Life Expectancy |
|
Battery Charging Current
|
165 mA
|
|
Recharge Time
|
24 Hour
|
|
Charging Indicator Light
|
LED
|
|
Temperature Rating (Ambient)
|
0°C to +50°C (32°F to 122°F)
|
|
Dimensions
|
18.5" L x 1.18" W x 1.18" H
(470 mm x 30 mm x 30 mm) Mounting Center 18.1" (460 mm) |
|
Weight
|
2.3 lbs. (1.0 kg)
|
