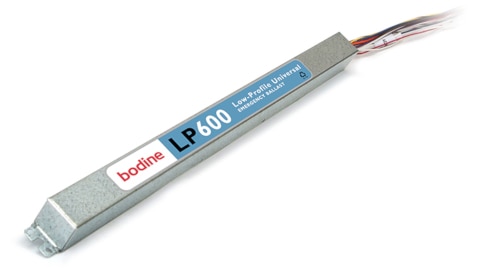

Specification-grade, high-lumen, low-profile emergency ballast for standard and high-output T5 and T8 lamps
End-of-lamp-life compatible
End-of-lamp-life compatible
|
Model #
|
12NC
|
|
LP600M
|
913710840902
|
|
UL Listed for US and Canada
|
Factory or Field Installation (Indoor and Damp)
|
|
Illumination Time
|
90 Minutes
|
|
Initial Light Output
|
600 - 1325 Lumens @ 25°C
|
|
Full Warranty
|
5 Years (NOT pro-rata)
|
|
Dual Input Voltage
|
120/277 VAC, 60 Hz
|
|
AC Input Current
|
180 mA
|
|
AC Input Power Rating
|
3.0 Watts
|
|
Test Switch
|
Single Pole
|
|
Battery
|
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery 7- to 10-Year Life Expectancy |
|
Battery Charging Current
|
165 mA
|
|
Recharge Time
|
24 Hour
|
|
Charging Indicator Light
|
LED
|
|
Temperature Rating (Ambient)
|
0°C to +50°C (32°F to 122°F)
|
|
Dimensions
|
21.5" L x 1.18" W x 1.18" H
(546 mm x 30 mm x 30 mm) Mounting Center 21.1" (536 mm) |
|
Weight
|
3.3 lbs. (1.5 kg)
|
