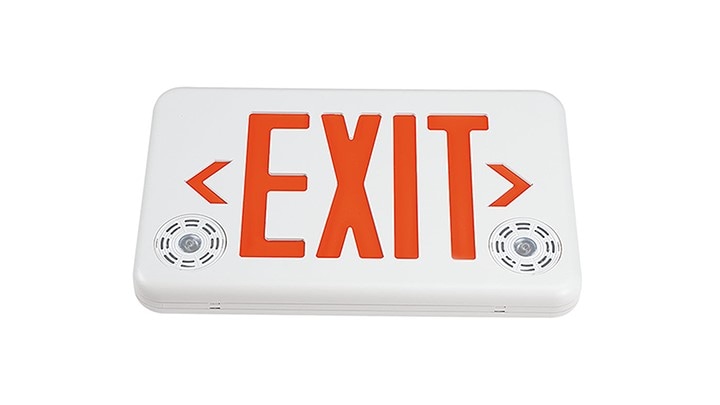

Battery Backup, Universal Mount
Red or Green Lettering
Adjustable Lamp Heads
FirstLink Compatible for Automated Testing and Reporting
UL Listed, Spacing up to 76’
Battery Backup, Universal Mount
Red or Green Lettering
Adjustable Lamp Heads
FirstLink Compatible for Automated Testing and Reporting
UL Listed, Spacing up to 76’
|
Model #
|
12NC
|
|
BCA2GWFL1 BCA2RWFL1 |
929002757113 929002757213 |
|
UL LISTED FOR US & CANADA
|
Listed to UL 924 for Field Installation in the US and Canada (Indoor and Damp) DOE Compliant |
|
Illumination Time
|
90 Minutes
|
|
Initial Light Output
|
520 Lumens (total from both lamp heads)
Fixture Spacings – See Spec |
|
Full Warranty
|
5 Years (NOT pro-rata)
|
|
Universal Input Voltage
|
120-277 VAC, 50/60 Hz
|
|
Construction
|
White thermoplastic housing UL94 5VA flame rated UV stable Contractor friendly snap together design Electronics and battery contained within housing |
|
Installation
|
Universal wall/end/ceiling mounting (universal mounting adapter provided for wall and end mounting) Back plate keyhole slots are easily removable knockouts for securing to a 3" or 4" j-box Pop-out directional indicating chevrons easily removed as required |
|
Battery
|
High-Temperature, Maintenance-Free
Lithium-Ion Battery 7- to 10-Year Life Expectancy |
|
Recharge Time
|
24 Hours
|
|
Temperature Rating (Ambient)
|
50° F to 104° F (10° C to 40° C)
|
|
Dimensions
|
8.7" H x 13.75" W x 2.13" D (220mm x 350mm x 255mm)
|
|
Weight
|
2.9 lbs (1.32 kg)
|
