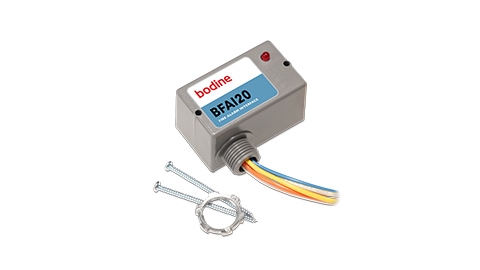

Fire Alarm Interface Lighting Control for Generator or Central Inverter Supplied Lighting
|
Model #
|
12NC
|
|
BFAI20
|
913702494501
|
|
UL Listed for US and Canada
|
UL 924 Listed in the US and Canada for Factory or Field Installation
|
|
Full Warranty
|
5 years (NOT pro-rata)
|
|
Dual Input Voltage
|
24 Vdc or 12-277 Vac, 50/60 Hz
|
|
AC Input Current
|
38mA @ 24 Vdc / 40mA @ 120-277 Vac
|
|
Relay Contact Ratings
|
10 Amps @ 277 Vac (General Use)
|
|
Temperature Rating (Ambient)
|
-34ºC to +60ºC (-30ºF to +140ºF)
|
|
Housing
|
NEMA 1 2.80” x 1.70” x 1.50” with a 0.50” threaded nipple (71 mm x 43 mm x 38 mm, 12.7 mm threaded nipple) UL 2043 Plenum Rated |
|
Weight
|
0.25 lbs (0.14 kg)
|
