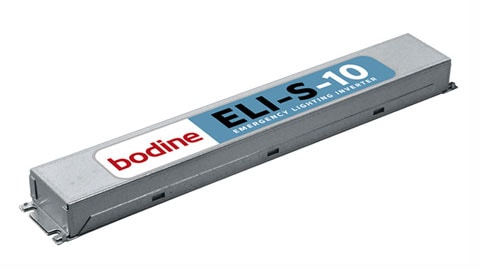

10VA Pure Sine Wave Output Nano Inverter
Automatic Output Voltage Select
Patented automatic dimming (0-10V) of connected loads
Automatic Output Voltage Select
Patented automatic dimming (0-10V) of connected loads
|
Model #
|
12NC
|
|
ELIS10
|
913702471101
|
|
ELIS10C
|
913702471301
|
|
ELIS10CDF
|
913702471401
|
|
ELIS10CBA
|
913702492201
|
|
UL Listed for the US and Canada
|
Listed to UL924 and tested to CSA 22.2, No. 141 For Field or Factory Installation (Indoor and Damp) |
|
Illumination Time
|
90 Minutes
|
|
Maximum Load Power
(including AC ballast/driver) |
50 W, consult factory for driver compatibility
|
|
Warranty
|
5 years (NOT pro-rata)
|
|
AC Input Voltage and Current
|
120 through 277VAC, 50/60 Hz, 80 mA
|
|
Output Voltage, Automatically selected
|
120 VAC +/- 10%, or 277 VAC +/- 10%
|
|
Output Frequency
|
60 Hz, +/- 5%
|
|
Test Switch
|
2W-ITS
|
|
Battery
|
Maintenance-Free Li-Ion Battery
|
|
Recharge Time
|
24 Hours
|
|
Charging Indicator Light Test Switch
|
Integrated LED/test switch
|
|
Temperature Rating (Ambient)
|
32° F to 122° F (0° C to 50° C)
|
|
Dimensions
|
15.34” L x 2.25” W x 1.16” H (390mm x 58mm x 30mm) |
|
Weight
|
3.45 lbs. (1.56kg)
|
