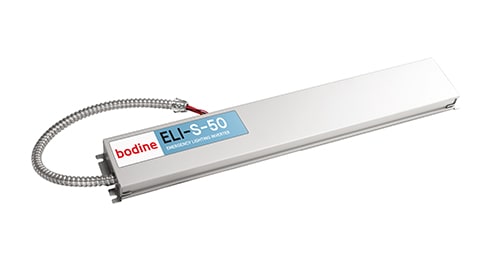

50 VA Pure Sine Wave Output Microinverter
Patented automatic dimming (0-10V) of connected loads
Robust 4kV input surge rating for high-bay applications
Patented automatic dimming (0-10V) of connected loads
Robust 4kV input surge rating for high-bay applications
|
Model #
|
12NC
|
|
ELIS50J2UK50C1ADI1
|
913702493801
|
|
UL Listed
|
UL924 Emergency Lighting Compliant
For Factory or Field Installation (Indoor and Damp) |
|
Illumination Time
|
90 Minutes
|
|
Maximum Load Power
|
Dimmable lighting loads: 320 VA maximum input power
Non-dimmable lighting loads: 50 VA maximum input power |
|
Full Warranty
|
5 years (NOT pro-rata)
|
|
Input Voltage
|
120-277 VAC, 50/60 Hz
|
|
AC Input Current
|
170 mA max (Battery Charging – Excludes passthrough to luminaire load)
|
|
Input Surge Withstand
|
4 kV (ANSI C82.77-5)
|
|
Output Voltage
|
120 Vac +/- 10%,
|
|
Test Switch/Charging Indicator
|
Two-Wire, Bi-Color Illuminated Test Switch IP65 rated for ingress protection to dust and water UL2043 plenum rated test switch assembly |
|
Battery
|
Maintenance-Free Li-ion Battery
|
|
Recharge Time
|
36 Hours
|
|
Temperature Rating (Ambient)
|
0°C to 50°C (32° F to 122°F) Case: Tc (max): 65 °C |
|
Dimensions
|
21.9" x 3.58" x 1.32" (556mm x 91mm x 33.5mm) Mounting center: 21.5" (3546mm) |
|
Weight
|
6 lbs. (2.72 kg)
|
|
Mounting Bracket Options
|
PRT00269 (12NC: 913702493401)
|
