LED emergency drivers

Bodine emergency LED drivers allow LED fixtures to serve as emergency lighting sources. The product line includes drivers designed for a variety of applications: indoor, outdoor egress, damp, cold temperatures, steplights, downlights, Class 2 installations and more. Combination drivers that provide both AC and emergency operation are also available.

As with other types of lighting, LED lighting must meet life safety code requirements for emergency lighting when it is used in an emergency capacity. Bodine delivers code-compliant emergency lighting solutions for today's sophisticated lighting landscape.

Product information

Connected Small Form Factor Linear Family

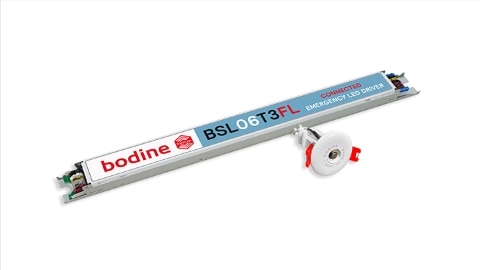

BSL06T3FL

FirstLink Connected
6 W Class 2 Output
Compact Low Profile Chassis
UL Listed and CEC Title 20

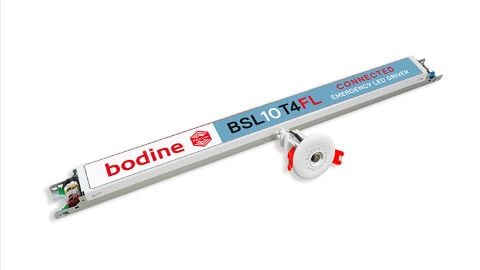

BSL10T4FL

FirstLink Connected
10 W Class 2 Output
Compact Low Profile Chassis
UL Listed and CEC Title 20

BSL10T3

10 W Class 2 Output
ABConnect and Selectable Self-Test
Very Compact, Low Profile Linear Case
CEC Title 20

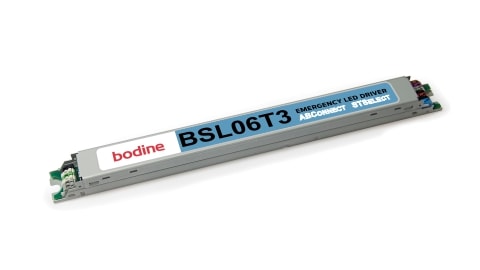

BSL06T3

6 W Class 2 Output
ABConnect and Selectable Self-Test
Compact, Low Profile Linear Case
CEC Title 20

BSL20B Family

20 W emergency illumination

The BSL20B Emergency LED Driver family provides 20 W of output power to convert high output luminaires into code-compliant systems. There are a variety of configurations to meet many diverse applications.

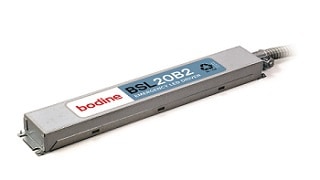

BSL20B2

20-54 Vdc or 54-200 Vdc output
Integral battery, with or without conduit
Field-installable

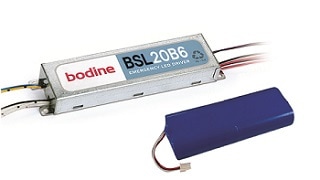

BSL20B6

Separate battery
Field-installable

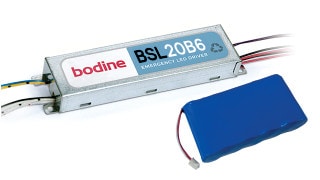

BSL20B6 Cold

-20°C to 55°C
Separate battery
Field-installable

BSL14B Family

14 W emergency illumination

The BSL14B Emergency LED Driver family provides 14 W of output power to convert high output luminaires into code-compliant systems. There are a variety of configurations to meet many diverse applications.

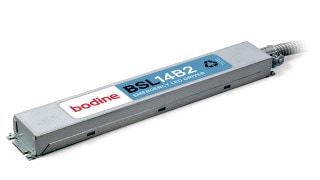

BSL14B2

15-54 Vdc or 54-200 Vdc output
Integral battery, with or without conduit
Field-installable

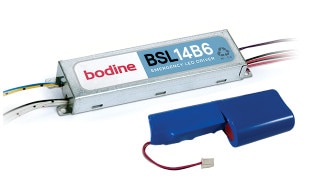

BSL14B6

Separate battery
Field-installable

BSL14B2 2-Hour

2-hour runtime
15-54 Vdc or 54-200 Vdc output
Integral battery, with or without conduit
Field-installable

BSL13B Cold Family

13 W emergency illumination

The BSL13B Cold Emergency LED Driver family delivers 13 W of output power for a minimum of 90 minutes. It provides Class 2 code-complaint emergency lighting for extreme temperature applications.

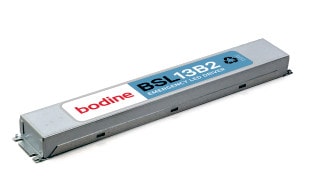

BSL13B2 Cold

-20°C to 55°C
Class 2 output
Field-installable

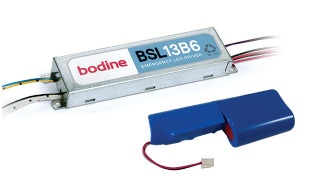

BSL13B6 Cold

-20°C to 55°C
Class 2 output
Separate battery
Field-installable

BSL07B

7 W emergency illumination

The BSL7B Emergency LED Driver family delivers 7 W of output power for a minimum of 240 minutes. It provides Class 2 code-complaint emergency lighting for especially demanding occupancy requirement.

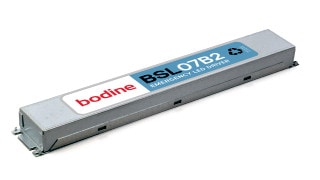

BSL07B2

4-hour runtime
Class 2 output
Field-installable

AC/Emergency combination driver family

The UltimateOne AC/Emergency Combination LED Drivers combine AC and emergency operation into one case.

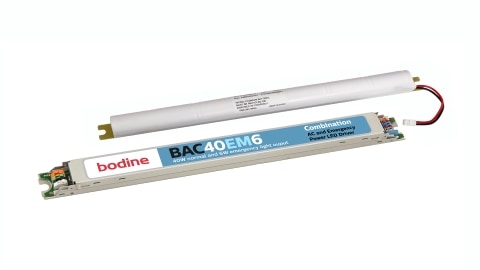

BAC40EM6

Up to 6 W emergency illumination
40W AC driver with 6W emergency output
A single compact, low-profile case

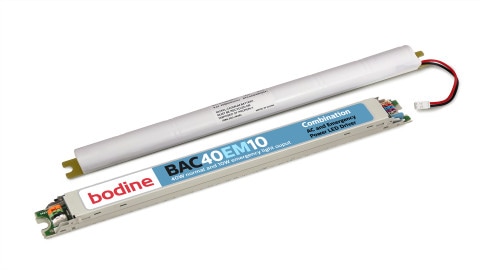

BAC40EM10

Up to 10 W emergency illumination
40W AC driver with 10W emergency output
A single compact, low-profile case

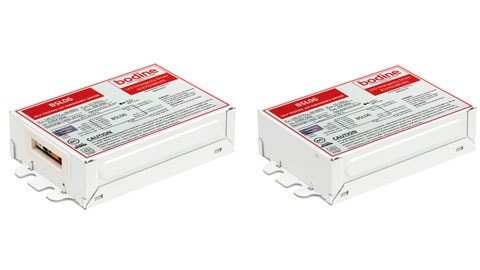

BSL06M5 family

6 W emergency illumination in a compact case

The BSL06M5 range is an innovative emergency LED driver designed to simplify installation, suitable for indoor/damp locations and is ideal for most applications.

BSL06M5

Self-Testing and ABConnect
Up to 6 W emergency illumination
Compact case
Class 2 output
Field-installable

BSL17 family

Up to 7.5 W emergency illumination

The BSL17 family is suitable for indoor and damp and is ideal for downlight and office applications.

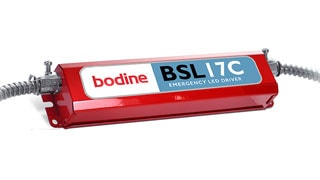

BSL17 & BSL17C

BSL17: non-conduit model
BSL17C: conduit model
Field-installable

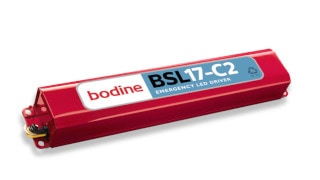

BSL17-C2 & BSL17C-C2

BSL17-C2: non-conduit model
BSL17C-C2: conduit model
Field-installable

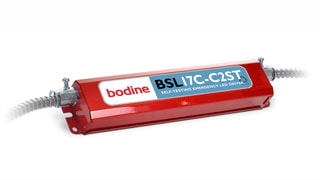

BSL17C-C2ST 

Conduit model
Self-testing
Field-installable

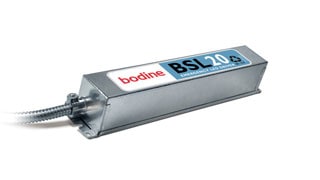

BSL20 family

20 W emergency illumination

The BSL20 family converts high output LED fixtures into code-compliant emergency lighting sources. The drivers provide 20 W of constant output power and a nominal lumen output of up to 2,600 lumens in emergency mode. The emergency driver models are named to reflect output voltage.

BSL20LV, BSL20MV & BSL20HV

LV: (low voltage), 20-50V
MV: (medium voltage), 50-130V
HV: (high voltage), 125-200V
Field-installable

BSL310 family

Up to 10 W emergency illumination

The BSL310 Emergency LED Driver family is designed to provide 10 W, Class 2 code-compliant emergency lighting for linear LED strip fixtures.

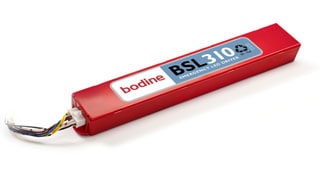

BSL310

Polycarbonate case
Field-installable

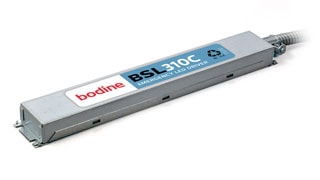

BSL310C & BSL310C-DF

BSL310C: metal case with conduit
BSL310C-DF: dual flex conduit
Field-installable

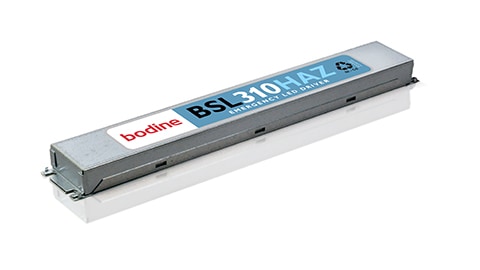

BSL310HAZ

Suitable for hazardous location luminaires
Factory installation only

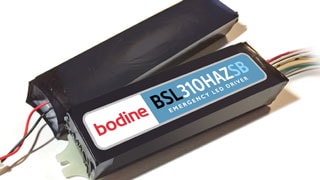

BSL310HAZSB

Suitable for hazardous location luminaires
Separate battery design
Factory installation only

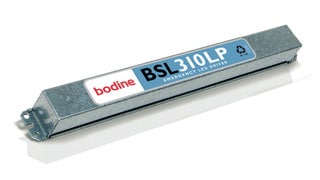

BSL310LP

Low-profile for space-limited installation
Field-installable

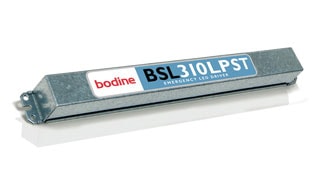

BSL310LPST

Low-profile for space-limited installation
Self-testing
Field-installable

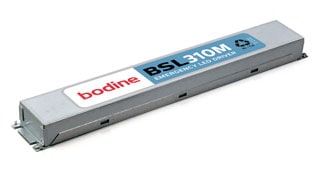

BSL310M

Non-conduit metal case
Field-installable

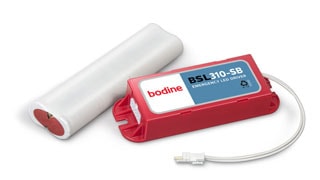

BSL310SB 

Separate battery design
Field-installable

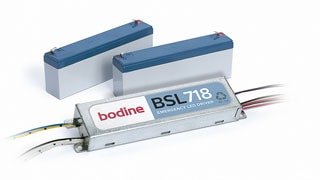

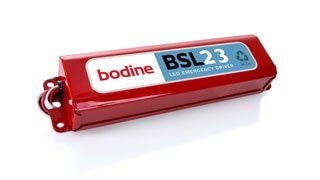

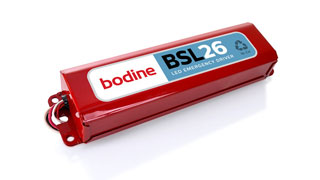

Other emergency LED drivers

Bodine offers emergency LED drivers for a wide array of applications, including field installation, extended temperature operation and self-testing operation.
