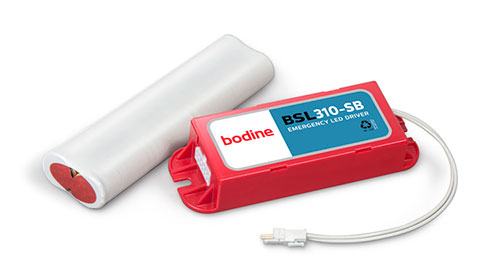

Emergency Driver for Linear LED Strips
Class 2 Output
Separate Battery Configuration
Class 2 Output
Separate Battery Configuration
|
Model #
|
12NC
|
|
BSL310SB
|
913702460201
|
|
UL Listed for US and Canada
|
Listed to UL924 and tested to CSA 22.2, No. 141 For Field or Factory Installation (Indoor and Damp)
|
|
UL Component Recognized
|
For Factory Installation
(Indoor and Damp) |
|
Illumination Time
|
90 Minutes
|
|
Full Warranty
|
5 Years (NOT pro-rata)
|
|
Universal Input Voltage
|
120-277 VAC, 50/60 Hz
|
|
AC Input Power Rating
|
4.0 W Maximum
|
|
Output Voltage
|
15-50 VDC
|
|
Output Power
|
10.4 W (Maximum)
|
|
Test SwitchTest Switch/Charging Indicator
|
1. 2W-ITS (2 wire Illuminated Test Switch)
2. IP67 rated 2W-ITS (can be used in wet locations). |
|
Battery
|
High-Temperature,
Maintenance-Free Nickel-Cadmium Battery 7- to 10-Year Life Expectancy |
|
Recharge Time
|
24 Hours
|
|
Temperature Rating (Ambient)
|
0°C to +55°C (32°F to 131°F)
|
|
Dimensions
|
6.57” x 2.25” x 1.18”
(167.mm x 57.mm x 30. mm) Mounting Center 6.0” (152.4 mm) |
|
Weight
|
2.25 lbs. (1.0 kg)
|
