New Compact Case
Self-Testing
Class 2 Output
Self-Testing
Class 2 Output
|
Model #
|
12NC
|
|

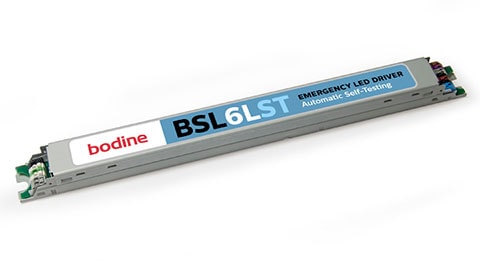

BSL6LSTM
|
913702477001
|
|
UL LISTED FOR US & CANADA
|
Listed to UL924 and tested to CSA 22.2 No. 141
Field or Factory Installation (Indoor and Damp) Output Class 2 Compliant |
|
Illumination Time
|
90 Minutes
|
|
Initial Light Output
|
Up to 780 Lumens
|
|
Full Warranty
|
5 Years (NOT pro-rata)
|
|
Universal Input Voltage
|
120-277 VAC, 50/60 Hz
|
|
Output Voltage
|
15 - 54 VDC
|
|
Output Power
|
6.0 W initial (regulated)
|
|
Test SwitchTest Switch/Charging Indicator
|
Two-Wire Illuminated Test Switch (2W-ITS)
|
|
Battery
|
High-Temperature, Maintenance-Free
Lithium-Ion Battery 7- to 10-Year Life Expectancy |
|
Recharge Time
|
24 Hours
|
|
Temperature Rating (Ambient)
|
0°C to +55°C (32°F to 131°F)
Case: Tc (max): 65°C |
|
Dimensions
|
14.1” x 1.18” x 1.0” (358 mm x 30 mm x 25 mm) Mounting Center 13.78” (350 mm)
|
|
Weight
|
0.75 lbs. (0.34 kg)
|
